AR Glass

Planti makes Anti-reflect coating with Sol-gel process.
The procedure consists of 2 parts: the Sol (solution) and the Gel. The Sol forms the gel, and the gel is applied as a coating to the substrate and is dried to create a hard, glossy film. The coatings are deposited using the dip coating method, at a withdrawal speed of 5 cm/min. All coatings are dried for 20 min under air conditions. Finally, these films are annealed at different temperatures for 20 min. and taken out from the oven after cooling at ambient temperature.

Advantages of AR Glass
Easy application
Easy application
More sunlight into greenhouses
More sunlight into greenhouses
Less crop stress
Less crop stress
Hydrophilic
Hydrophilic
Tough protection
Tough protection
Nonstick
Nonstick
Extrem temperature
Extrem temperature
Scratch resistance
Scratch resistance
specification
Haze 0% 0% 10% 30% 50% 70%
Pattern Normal clear Low iron clear Matt-Matt Matt-Matt Nashiji/Prismatic Matt Prismatic Matt
Light Transmittance(with 1 AR) 91.50% 95.00% 95.00% 94.50% 94.50% 94.00%
Light Transmittance(with 2 AR) 94.00% 97.50% 97.00% 97.00% 97.00% 96.50%
Hemispherical (with 1 AR) / 87.00% 87.00% 87.00% 86.50% 85.00%
Hemispherical (with 2 AR) / 90.50% 90.50% 89.50% 87.50% 86.50%
Thickness Tolerance +/- 0.2 mm +/- 0.2 mm +/- 0.2 mm +/- 0.2 mm +/- 0.2 mm +/- 0.2 mm
Length/Wideth Tolerance +/- 1.0 mm +/- 1.0 mm +/- 1.0 mm +/- 1.0 mm +/- 1.0 mm +/- 1.0 mm
Diagonal Tolerance +/- 2.0 mm +/- 2.0 mm +/- 2.0 mm +/- 2.0 mm +/- 2.0 mm +/- 2.0 mm
Mechanical Strength > 150N/ mm² > 150N/ mm² > 120N/ mm² > 120N/ mm² > 120N/ mm² > 120N/ mm²
Local Bow ≤ 2‰   (Max.0.5mm over a distance of 300mm)
Overall Bow ≤ 3‰   (Max.3mm over a distance of 1000mm)

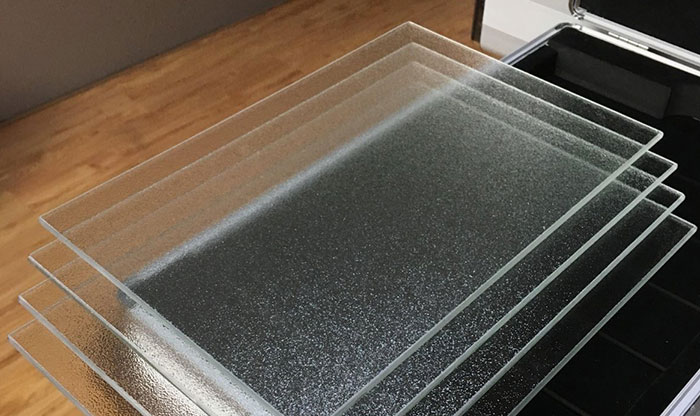

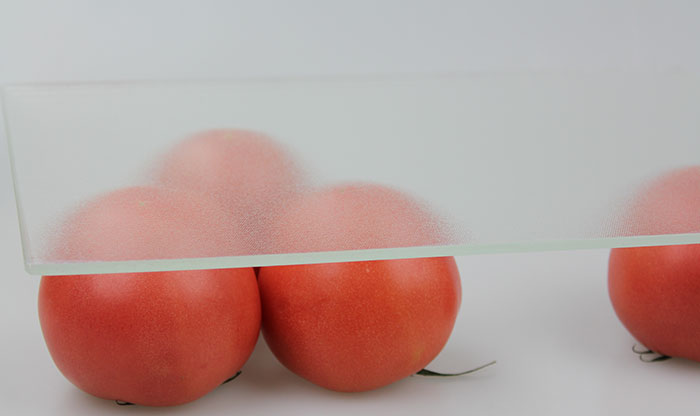

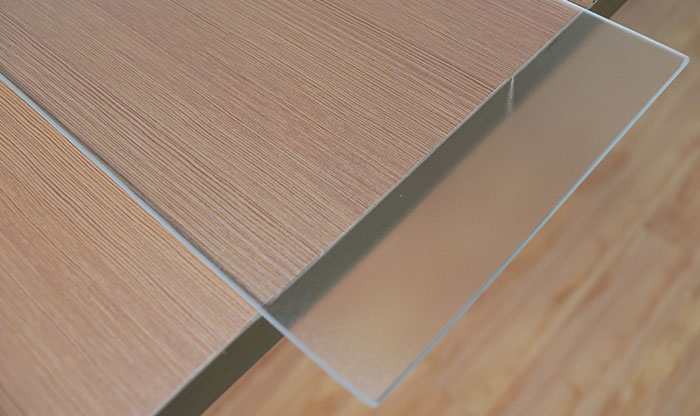

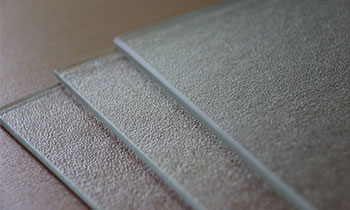

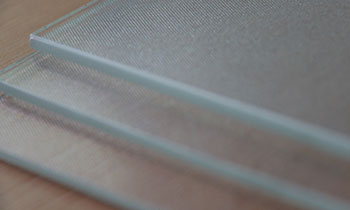

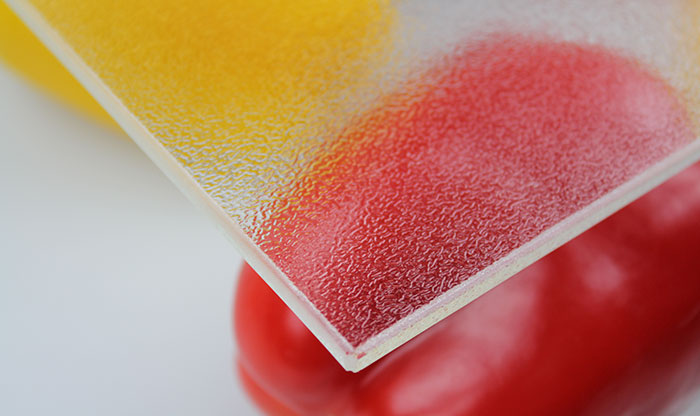

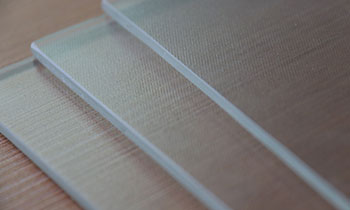

product pictures
